TubeTrace® – VSX-HT – Thermon

Description

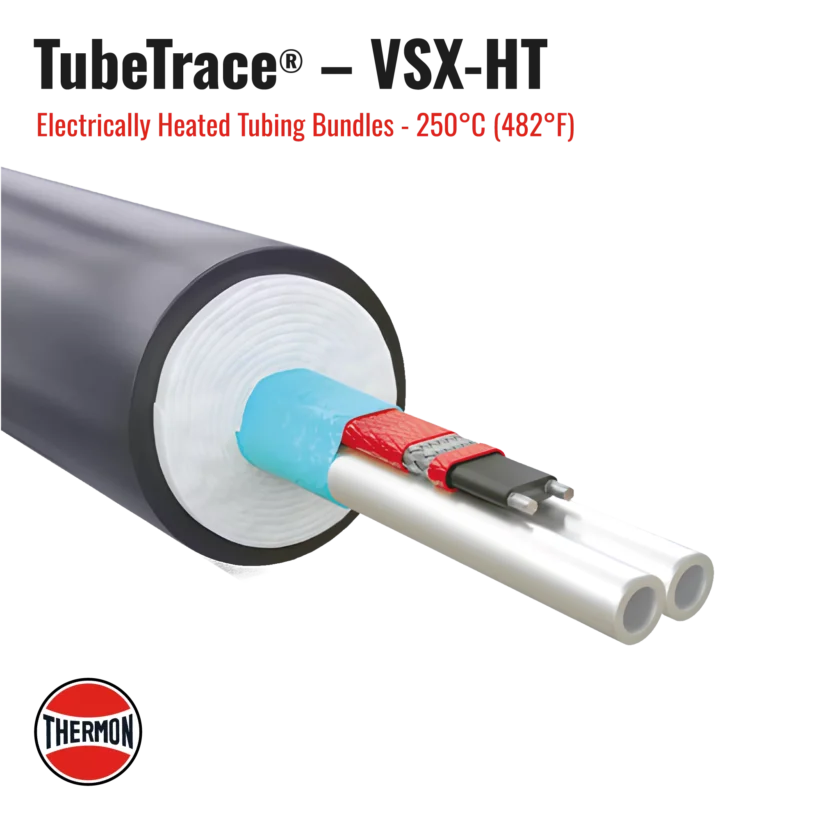

This is an electrically heated and insulated tubing bundle that utilizes VSX-HT self-regulating heat tracing, making it a high-performance choice for process temperature maintenance or freeze protection in environments where high temperature exposure is a consideration. It is designed to maintain tube temperatures up to 149°C (300°F) while having the ability to withstand intermittent exposure temperatures (like steam purging) up to 250°C (482°F). As a self-regulating cable, the VSX-HT automatically adjusts its heat output based on the surrounding temperature, preventing overheating and ensuring uniform temperature along the line.

Features

• Heat Trace Type: Uses VSX-HT self-regulating heat tracing, which automatically regulates heat output along the circuit length.
• Maximum Maintain Temp: Can maintain process temperatures up to 149°C (300°F).
• High Exposure Capability: Can withstand intermittent temperature exposures (power on or off) up to 250°C (482°F), making it suitable for steam purging.
• Installation: “Cut-to-length” feature allows for easy field fabrication and connections, minimizing waste.
• Safety: Lower risk of overheating the product and approved for use in ordinary (non-classified) areas and hazardous (classified) areas (including Zone 1/Division 1 and 2 options).
