TubeTrace® – MIQ – Thermon

Description

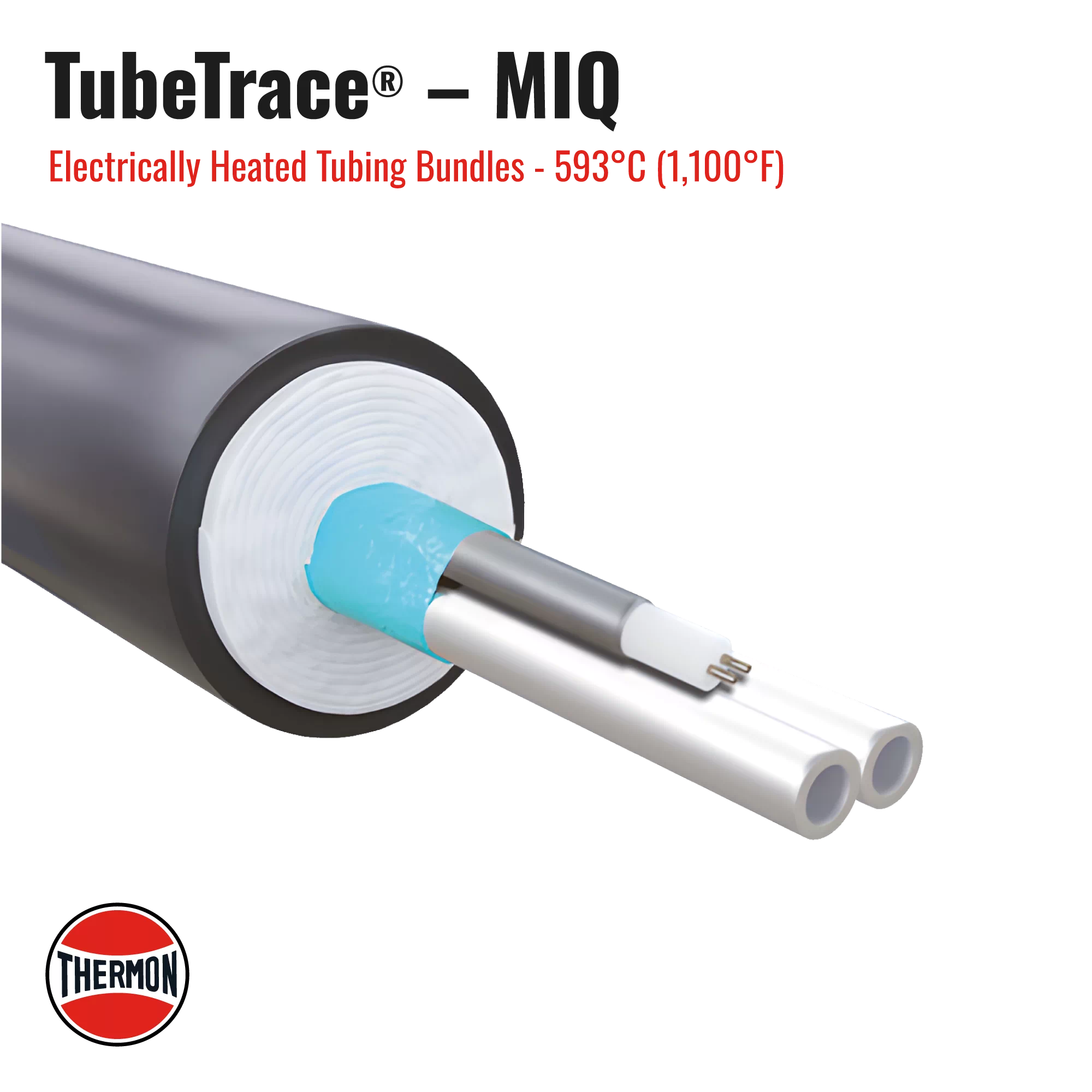

This is an electrically heated and insulated tubing bundle that utilizes MIQ (Mineral Insulated Quartz) series resistance heating cable. It is considered the industry standard for ultra-high temperature applications and for situations requiring high watt density. Unlike the cut-to-length cables, MIQ heaters are pre-fabricated to specific lengths at the factory. This construction, featuring a seamless Alloy 825 metallic sheath and magnesium oxide insulation, provides exceptional durability and the highest temperature ratings, allowing for both very high temperature maintenance and resistance to extreme exposure.

Features

• Heat Trace Type: Uses MIQ (Mineral Insulated Quartz) series resistance heating cable.
• Maximum Maintain Temp: Can maintain high temperatures up to 500°C (932°F).
• Extreme Exposure: Can continuously withstand exposure temperatures (power off) up to 593°C (1100°F).
• Durability: The seamless Alloy 825 sheath provides superior resistance to corrosion in harsh, high-temperature, and chemical environments.
• Watt Density: Capable of very high watt density output, suitable for high heat load applications.
• Installation: MIQ heaters are pre-fabricated to specific lengths and cannot be cut in the field.
• Certification: Approved for use in ordinary (non-classified) areas and hazardous (classified) areas.
