Description

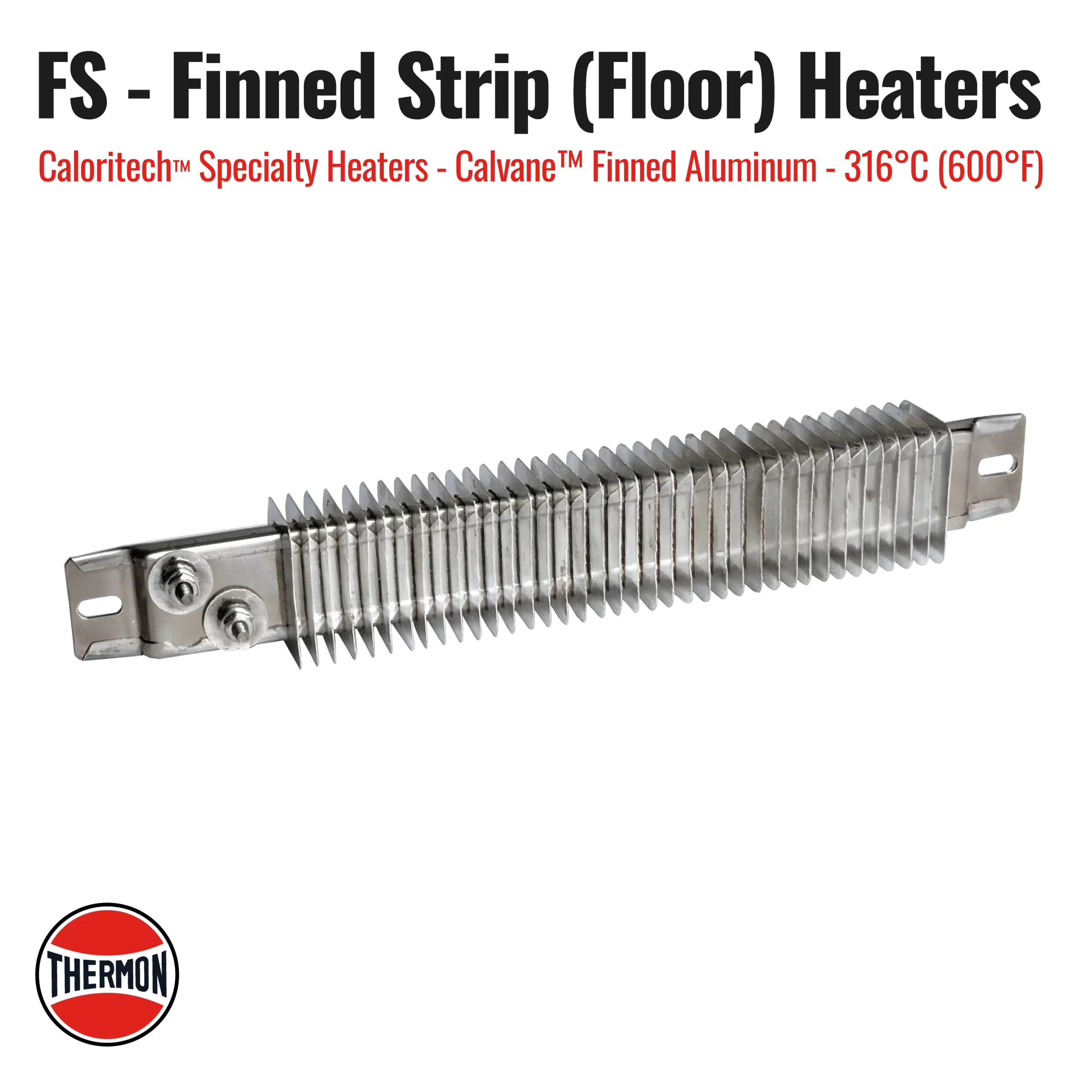

The Caloritech™ A29 FS Series Finned Strip Heaters are industrial-grade electric resistance heaters engineered for efficient air heating applications. The heating element assembly is encased in an aluminized steel sheath, compressed under high pressure to enhance mechanical strength, corrosion resistance, and thermal conductivity. Steel fins are mechanically bonded to the sheath to increase surface area and improve convective heat transfer, making these heaters suitable for duct heating, oven heating, enclosures, and process air systems. The standard maximum sheath temperature is 1000°F (538°C). Units are available in multiple watt densities, voltages, and lengths, with optional accessories for enhanced electrical safety and installation flexibility.
Features
- Aluminized steel sheath for corrosion resistance and improved durability
- Maximum sheath temperature rating of 1000°F (538°C)
- Cadmium-plated steel fins (0.022″ thick) for enhanced heat dissipation
- Nominal four fins per inch for optimized convective performance
- High watt density and low watt density configurations available
- Standard voltage ratings of 120V and 240V
- Compatible with lower voltages for reduced wattage output
- Custom wattage, voltage, and length options available upon request
- Two offset bolt-type terminals at one end (FS Series design)
- Secondary insulators required when voltage to ground exceeds 300V
- Optional brass bus bars for series or parallel heater connections
- Optional ceramic post terminal covers for shock protection
- Optional terminal boxes with BX cable fittings
- Surface clamps available for secure mounting to tanks, platens, or dies
- Suitable for industrial air heating and process heating applications
