Description

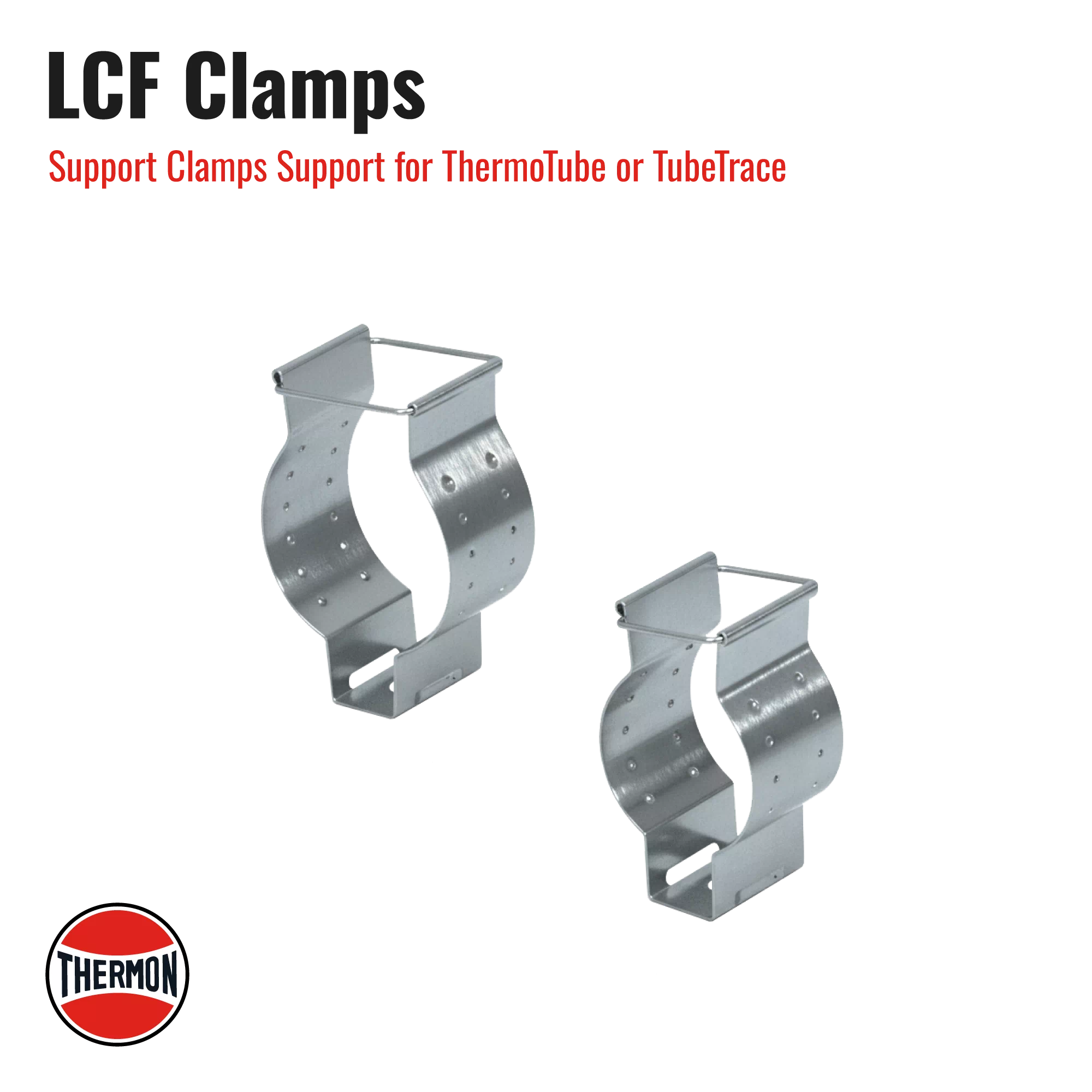

The LCF Clamps are specialized support clamps designed to secure and anchor Thermon’s pre-insulated tubing products, including TubeTrace (heated bundles) and ThermoTube (non-heated bundles), to the supporting structure (e.g., cable trays, beams, or angle iron). They ensure the tubing bundle is properly supported along its run, preventing sagging or damage to the jacket and insulation over time.

Features

• Function: Provides support and secure fastening for tubing bundles to rigid structures.
• Compatibility: Designed specifically for ThermoTube and TubeTrace installations.
• Size Variants: Available in different sizes to fit common bundle outside diameters: LCF 1-1/4”: For bundles up to 35.0 mm (1-3/8 inches) O.D. LCF 1-5/8”: For bundles up to 44.5 mm (1-3/4 inches) O.D.
• Installation: Used in conjunction with stainless steel banding or screws to tightly grip the outer jacket of the tubing bundle and fix it to the structural support.
