1. Introduction: How Does Heat Loss Occur?
Industrial pipelines, tanks, and equipment constantly lose heat depending on environmental conditions. This leads to reduced energy efficiency, disruptions in process performance, and freeze-related malfunctions. Thermon provides guidance on how proper insulation in electric heating systems helps prevent such losses.
2. Insulation + Heat Trace: How the System is Built
🔍 Key Steps:
- Determining Heat Losses
Ambient temperature, wind speed, pipe diameter, length, and surface conditions are measured to calculate heat loss. - Choosing the Right Insulation
The appropriate insulation thickness is selected to keep losses at a minimum. - Calculating the Heating Cable
Using design tools such as Thermon’s CompuTrace, self-regulating or power-limiting cables are selected. Self-regulating cables adjust heat output based on environmental changes, while power-limiting cables provide safe heating for high-temperature applications. - Installation and Insulation

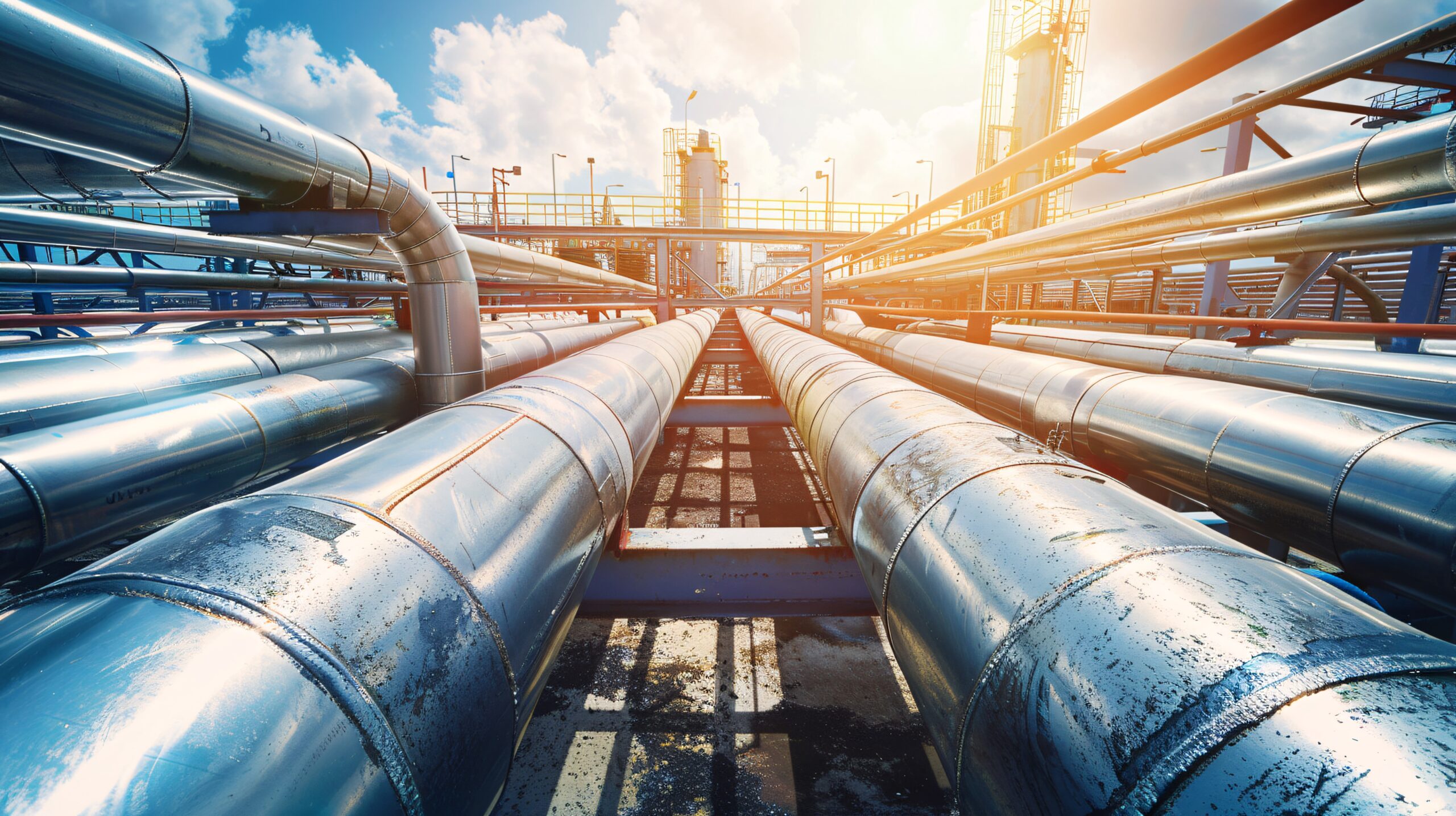

Cables are securely fastened to pipes, then the entire system is insulated and typically covered with a protective metal jacket.
3. Technical Insights from Thermon
- FLX™ Self-Regulating Series: Operates between 10–33 W/m and withstands temperatures down to -60 °C. Prevents overheating beneath insulation.
- MIQ™ Mineral Insulated Cables: Supports up to 1.6 km in length with high-temperature endurance, even in aggressive environments.
- ThermTrac™ Skin-Effect System: Provides long-distance (up to 25 km) heating with low energy loss, requiring only one power point.
For more technical details, visit Thermon’s official website: thermon.com
4. A Data-Driven Approach to Efficiency
Thermon’s software tools comply with IEEE 515 standards. CompuTrace enables optimized system design based on project-specific needs by calculating:
- Pipe diameter and insulation thickness
- Heat loss and cable wattage
- Thermostat and control requirements
- Accessories like breakers and panels
5. Real-World Industrial Applications
- Petrochemical & Power Plants: MIQ and power-limiting cables maintain high-temperature processes.
- Chemical Plants & Water Treatment: FLX cables provide reliable freeze protection.
- Remote Pipelines & Renewable Projects: ThermTrac offers distributed heating without distance limitations.
6. Why This Approach Works
Most energy losses occur in uninsulated systems. Therefore, cable heating alone is not sufficient. Combining insulation with heat tracing improves energy efficiency by 30–50%. It extends equipment life, reduces maintenance frequency, and lowers operational costs.
7. Conclusion
To minimize industrial heat losses, reduce carbon emissions, and build economically efficient systems, thermal insulation should always be used together with electric heat tracing. Thermon’s solutions—FLX, MIQ, and ThermTrac—reach these goals with scientific precision and practical implementation through comprehensive engineering calculations, advanced insulation techniques, and integrated control systems.
